Inicio /Productos/Máquina de fregadero de cocina/High - Precision Laser Cutting System for Stainless Steel

High - Precision Laser Cutting System for Stainless Steel

1 set
MOQ
negotiable
Precio
High - Precision Laser Cutting System for Stainless Steel
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Base de datos de procesos de corte láser: Base de datos de procesos de corte láser
Sistema generador láser: Max 3000W
Tipo de máquina: Máquina de corte láser de fibra de tipo rollo
Sistema: Servo
Voltaje: 380V/220V opcional
Dimensión (L*W*H): 2200*2400*4200 mm
Velocidad de posicionamiento máxima: 100m/min
Energía del motor (KW): 30kw
Resaltar:

stainless steel laser cutting system

,

high-precision kitchen sink machine

,

laser cutting system with warranty
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Star Power
Certificación: CU,ISO
Número de modelo: YZ28G0200T
Pago y Envío Términos
Detalles de empaquetado: Marco de metal con película
Tiempo de entrega: 1 mes
Condiciones de pago: L/C, D/P, T/T
Capacidad de la fuente: 100 conjuntos/conjuntos por mes
Descripción de producto
High-Precision Laser Cutting System for Stainless Steel
Product Specifications
Attribute Value
Database of laser cutting processes Database of laser cutting processes
Laser generator system MAX 3000W
Machine Type Roll type fiber laser cutting machine
System Servo
Voltage 380V/220V Optional
Dimension (L*W*H) 2200*2400*4200mm
Maximum positioning speed 100m/min
Motor Power (kw) 30kw
Product Description
This stainless steel laser cutter features a high-precision cutting system focused on extreme accuracy, serving as core equipment for precision stainless steel processing. The system integrates a high-stability laser source with micron-level CNC positioning technology, achieving ±0.01mm positioning accuracy and ±0.005mm repeat positioning accuracy.
Capable of cutting stainless steel sheets from 0.1-18mm thickness, the system handles complex micro-holes, fine seams, and special-shaped structures with perfect accuracy, meeting stringent requirements for medical devices, electronic components, and precision hardware.

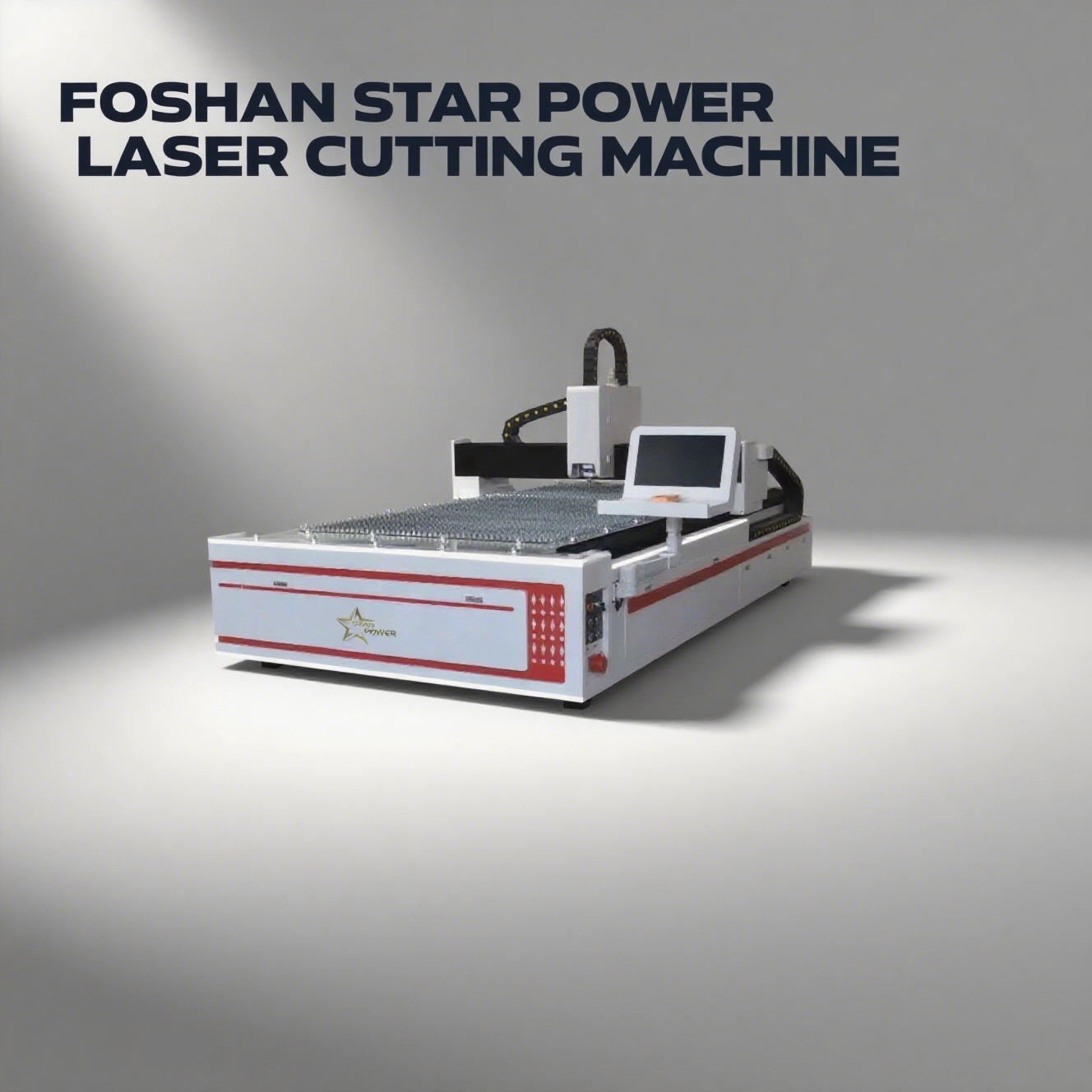

High - Precision Laser Cutting System for Stainless Steel 0
High-speed laser cutter in operation
Key Features
  • High-definition visual positioning for automatic sheet calibration
  • Supports layered cutting of complex graphics
  • Low-loss laser optical path design for long-term precision stability
  • Continuous reliable performance for industrial applications
Application Scenarios
  • Furniture Manufacturing: Produces components of various shapes for unique designs
  • Mechanical Manufacturing: Precisely cuts complex shapes with high accuracy
  • Architectural Decoration: Enables fine processing of decorative metal components
  • Aerospace: Meets extreme quality and accuracy requirements
  • Electronics Industry: Cuts circuit boards and achieves micro-component processing
Packaging & Protection
The system is packaged with high-quality protective film that conforms to equipment contours, preventing scratches, collisions, and dust intrusion during transport. The moisture-resistant film protects precision components, with professional application ensuring complete coverage of all critical parts.
Technical Specifications
CNC system (Including Control Software) FSUT 2000E
Automatic following system FSCUT
Database of laser cutting processes Star Power Laser
Laser generator system MAX 3000W
Manual laser cutting head Raytools
High-flex cable energy chains China
Remote control handle CC laser
High - Precision Laser Cutting System for Stainless Steel 1
Laser cutter close-up view
High - Precision Laser Cutting System for Stainless Steel 2

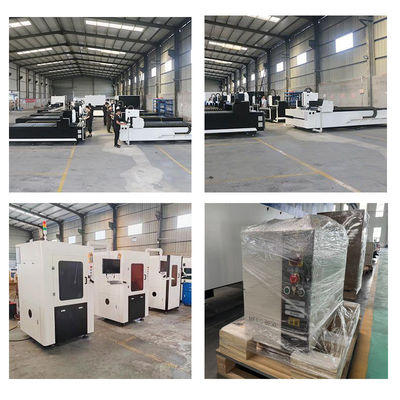

Laser cutter in production environment
High - Precision Laser Cutting System for Stainless Steel 3

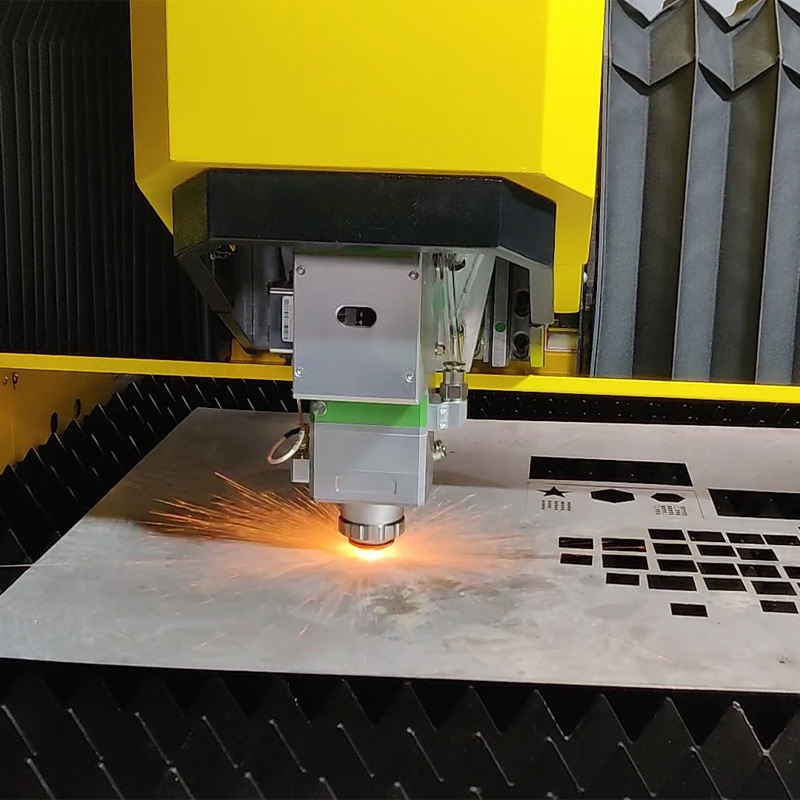

Laser cutter cutting process
High - Precision Laser Cutting System for Stainless Steel 4
Laser cutter detailed components
