Inicio /Productos/Máquina de la prensa hidráulica/ProForm HD Industrial Hydraulic Press Machine with 20000 KN Force 80 Mpa Pressure and 250 MM Travel for Metal Processing

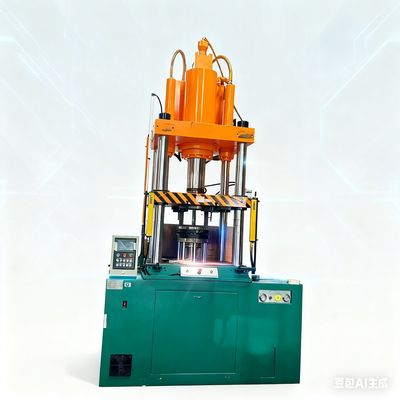

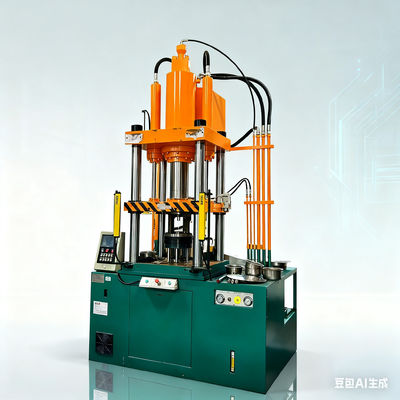

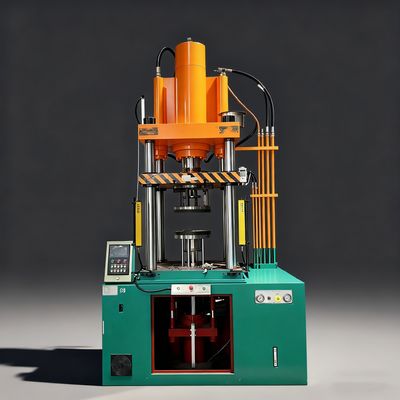

ProForm HD Industrial Hydraulic Press Machine with 20000 KN Force 80 Mpa Pressure and 250 MM Travel for Metal Processing

1 set
MOQ
negotiable
Precio
ProForm HD Industrial Hydraulic Press Machine with 20000 KN Force 80 Mpa Pressure and 250 MM Travel for Metal Processing
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Sistema: SOCIEDAD ANÓNIMA
Tipo de bomba de aceite: Bomba múltiple
Fuerza nominal del cilindro de aceite principal: 20000 KN
Presión máxima de trabajo del cilindro de aceite principal: MPa 80
Recorrido máximo del haz transversal de actividad: 250 mm
Resaltar:

20000 KN Force Hydraulic Press Machine

,

80 Mpa Pressure Industrial Hydraulic Press

,

250 MM Travel Heavy-Duty Hydraulic Press
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Star Power
Certificación: CU,ISO
Número de modelo: PF - 2200He
Pago y Envío Términos
Detalles de empaquetado: Marco de metal con película
Tiempo de entrega: 1 mes
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente: 100 conjuntos/conjuntos por mes
Descripción de producto
ProForm HD Industrial Hydraulic Press with High-Efficiency Control for Metal Processing
Product Description​
The ProForm PF - 2200HE is a professional heavy-duty hydraulic press tailored for metal processing scenarios like forming (curving, shaping), stamping (punching, marking), and assembly (part fitting, component joining). It adopts a high-efficiency control system, guaranteeing stable dimensional accuracy (±0.03 mm) in each operation.​
Built with a high-rigidity cast steel frame, it ensures minimal deformation during high-pressure work. The press supports adjustable pressing force (120 - 2200 kN) and stroke speed (6 - 42 mm/s) to fit diverse processing needs. Its simple operation panel enables quick parameter setting, and safety configurations (emergency stop button, safety door, pressure overload alarm) ensure operational safety. Moreover, it has an energy-saving hydraulic system, reducing energy consumption by 22% compared to conventional presses, suitable for small to medium-sized manufacturing workshops.

Specification Category Parameter Value
Pressure Capacity 40 - 800 Ton
Ram Stroke 300 - 500 mm
Worktable Dimensions 400×300 mm - 1000×800 mm
Ram Speed 12 - 100 mm/sec
Motor Power 5 - 30 kW
Control System Touchscreen Control
Maximum Hydraulic Fluid Pressure 25 MPa
Maximum Open Height 500 - 1000 mm
Ejector Force 10 - 160 Ton
Ejector Stroke 200 - 500 mm
Power Supply 380V/50Hz 3-Phase
Operating Temperature Range 5°C - 40°C
Noise Level ≤ 85 dB(A)
Machine Weight 1500 - 8000 kg
Safety Features Emergency Stop Button, Overload Protection, Light Curtain
ProForm HD Industrial Hydraulic Press Machine with 20000 KN Force 80 Mpa Pressure and 250 MM Travel for Metal Processing 0
ProForm HD Industrial Hydraulic Press Machine with 20000 KN Force 80 Mpa Pressure and 250 MM Travel for Metal Processing 1

Company Introduction Founded in 2022, Foshan Star Power Technology Co., Ltd. is located in Foshan, a city renowned for its pottery and martial arts. With a registered capital of 5 million yuan, our company focuses on a wide range of businesses, including information system integration, machinery and metal product sales, and import-export services. In the field of sink production lines, we offer advanced solutions. Our equipment combines high-precision CNC technology with efficient production processes. We are committed to providing customers with complete sets of sink production line equipment, which can achieve operations such as laser cutting, bending, and welding. This not only ensures the high-quality manufacturing of sinks but also meets the production needs of different batch sizes, helping our clients improve production efficiency and product quality.
